A dedicated forming capability
Plate, sheet & tube rolling
Sheet, plate, angle, and tube rolling for repairs and fabricated parts.
Start with the diameter and required fit
Send the material, profile, dimensions, and target radius or diameter. We will check the current machine fit and any fabrication that follows the roll.
Flat material needs a controlled curveTube requires a target radiusA rolled part must connect cleanly to downstream fabrication
Rolling connected to the fabricated assembly
Angle and profile rolling
Tube rolling and bending
Rolled components coordinated with fabrication
Processes
Work involved
- Sheet metal and plate rolling
- Angle and profile rolling
- Tube rolling and bending
- Geometry verification
Equipment
Shop resources
- Plate and sheet rolling equipment
- Angle and tube rolling equipment
Rolling equipment and shop work
Profile, width, thickness, and target geometry drive the setup. These photographs show the rolling process and cylindrical steel work in the Barnes shop.
Related projects
Selected work using this process
Custom fish-transfer pipe spools

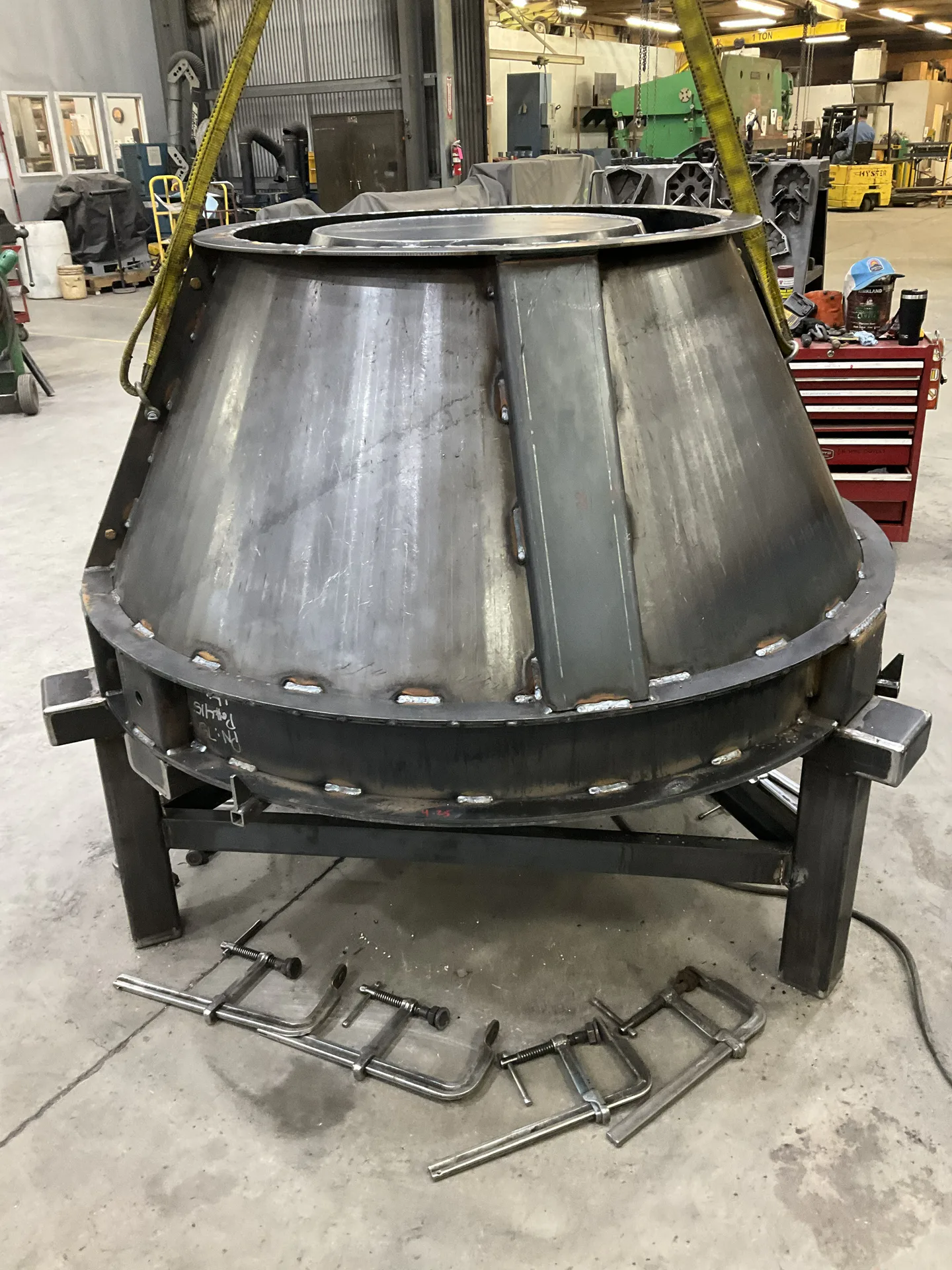

Rolled conical form fabrication
Information to send
Send the profile and target geometry
Include material, width, thickness, quantity, and the target radius or diameter.
- Send the material, profile, dimensions, and target shape
- Review the geometry and current equipment fit
- Confirm the rolling and downstream fabrication sequence
- Roll and check the work
Useful questions
What plate thickness can Barnes roll?
Capacity depends on material, width, thickness, and target diameter. Send those details so we can confirm the current machine fit.
Can Barnes roll tube or structural profiles?
Barnes rolls tube and structural profiles. Send the exact profile, dimensions, material, and target radius so the shop can review the setup.
Markets
Common applications
Process control
Material and geometry set the job
Profile, width, thickness, and target radius or diameter determine the setup.
- Confirm material and profile
- Plan setup and downstream work
- Check the required geometry
